BKSC dry-type shunt reactor has excellent moisture and humidity resistance, excellent performance in anti-fouling, dust-proof, anti-fog, salt resistance, high electrical and mechanical strength, and strong thermal shock resistance. With its safety, fire prevention, pollution-free, small size, beautiful appearance, maintenance-free, easy installation, etc., it is more and more popular with users, and is the first choice for indoor reactive power compensation devices. In overhead or long cable lines, the voltage rises due to the voltage drop of the line's capacitance (capacitance to ground and phase-to-phase capacitance) on the line's inductance under no load or light load. It will make the line voltage higher than the supply voltage. Generally, the longer the line, the greater the capacitance effect and the higher the power frequency voltage.
After introducing shunt reactor:
(1) Capable of absorbing large amounts of capacitive reactive power on no-load long lines.
(2) Capacitive effects on light no-load or light-load lines to reduce power frequency transient overvoltages.
(3) Improve the voltage distribution on long transmission lines.
(4) In the light load, the reactive power in the line is balanced in place as much as possible to prevent the unreasonable flow of reactive power and also reduce the power loss on the line.
(5) Prevent the self-excitation resonance phenomenon that may occur on the generator's long line.

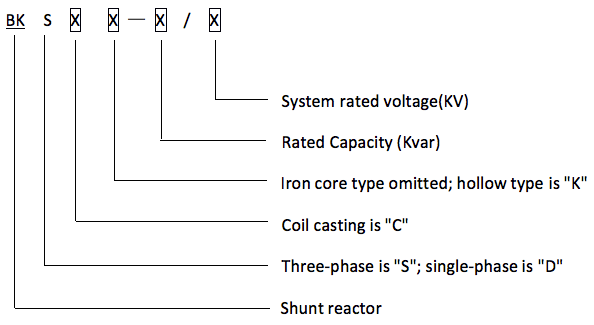

The BKSC series of resin-insulated dry-type iron-core shunt reactors produced by our company adopts a new type of pull-tab structure, which is made of non-magnetic stainless steel. Wide product coverage. The reactor capacity is from 10kvar to 2000kvar. The voltage level is from 3KV to 35KV. Its structure and shape are basically similar to CKSC series reactors.
Can call for inquiries, customized selection according to user requirements
