SC (B), DC series resin insulated dry-type transformerIt has excellent moisture and humidity resistance, excellent performance in anti-fouling, dust-proof, anti-fog, anti-salt, etc. It has high electrical and mechanical strength and strong ability to withstand thermal shock. With its safety, fire prevention, pollution-free, small size, beautiful appearance, maintenance-free, easy installation and other characteristics, it is increasingly favored by the majority of users, is an excellent product for urban power grid transformation.

Widely used in: high-rise buildings, hotels, residential quarters, commercial centers, airports, stations, docks, subways, tunnels, power plants, petrochemical plants and other power consumption units; ships, offshore oil platforms, etc. require fire, explosion, moisture, Important place to prevent salt spray.

SC (B) series resin insulated dry-type transformers produced by our company cover a wide range. The capacity of distribution transformers of 10KV and below ranges from 3KVA to 3150KVA; the voltage on the high side can be from 3KV to 35KV, and the voltage on the low side is generally 0.4KV, which can also be customized according to the user's requirements. Our company also specially developed a transformer suitable for the station (station) installed in the KYN28 cabinet.

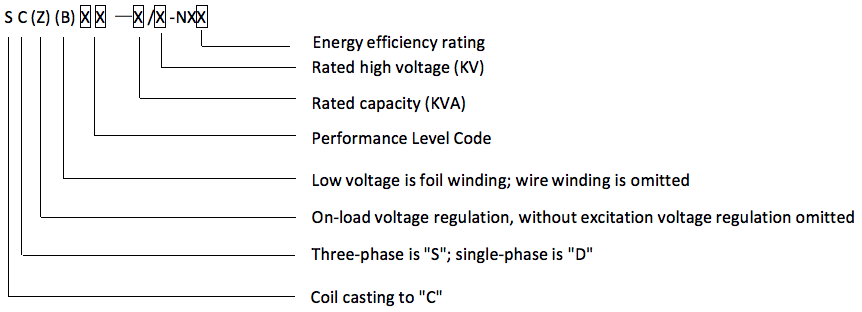

Example: Such as model SCB12-800 / 10-NX2: expressed as 12-type 10KV, 800KVA low-voltage foil-wound three-phase non-excitation casting dry-type transformer, energy efficiency level 2
