In order to improve the power factor of the power system, shunt capacitor banks are usually used to compensate the reactive power of the power system. On the other hand, when there are a lot of harmonic sources such as rectifiers and converters in the power grid, the higher harmonics they generate will seriously endanger the safe operation of the main transformer and other electrical equipment. In order to limit the closing inrush current of the capacitor bank, suppress the higher harmonics of the power system, and protect the safe operation of the capacitor bank, a series reactor must be installed on the capacitor bank. The series connection of the series reactor and the parallel capacitor group can effectively absorb the harmonics of the power grid, improve the voltage waveform of the system, increase the power factor of the system, and effectively suppress the closing inrush current and operating overvoltage, which effectively protects the capacitor Group, clean power system energy.
CKSC series resin insulated dry core series reactor, Has excellent moisture and humidity resistance, excellent performance in anti-fouling, dust-proof, anti-salt fog, high electrical and mechanical strength, strong ability to withstand thermal shock. With its safety, fire prevention, pollution-free, small size, beautiful appearance, maintenance-free, easy installation, etc., it is more and more popular with users, and is the first choice for indoor reactive power compensation devices.

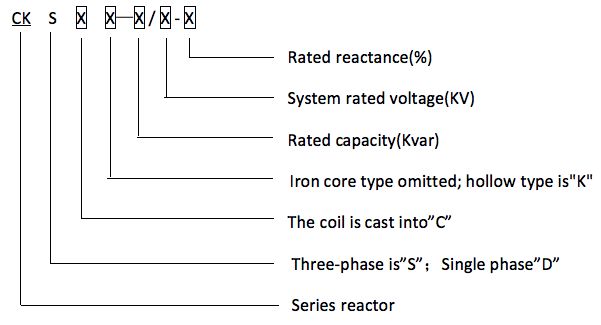

Our company's CKSC series resin insulated dry-type iron core series reactor products have a wide coverage. The reactor capacity is from 3kvar to 1200kvar. The voltage level is from 3KV to 35KV. The reactance rate of the series reactor is generally: 1%, 4.5%, 5%, 6%, 12%, and the reactance rate can be selected according to user requirements. The incoming and outgoing wires of the series reactor can be on the same side or on both sides. The user can choose according to the wiring requirements.
CKSC series, system voltage 6 ～ 10KV level, single output, no lead-out dimensions
CKSC series, system voltage 6 ～ 10KV level, single output, no lead-out dimensions
